Customer Service Nightmare: Cooler Master Tells Users to Dismantle Dangerous Power Connector

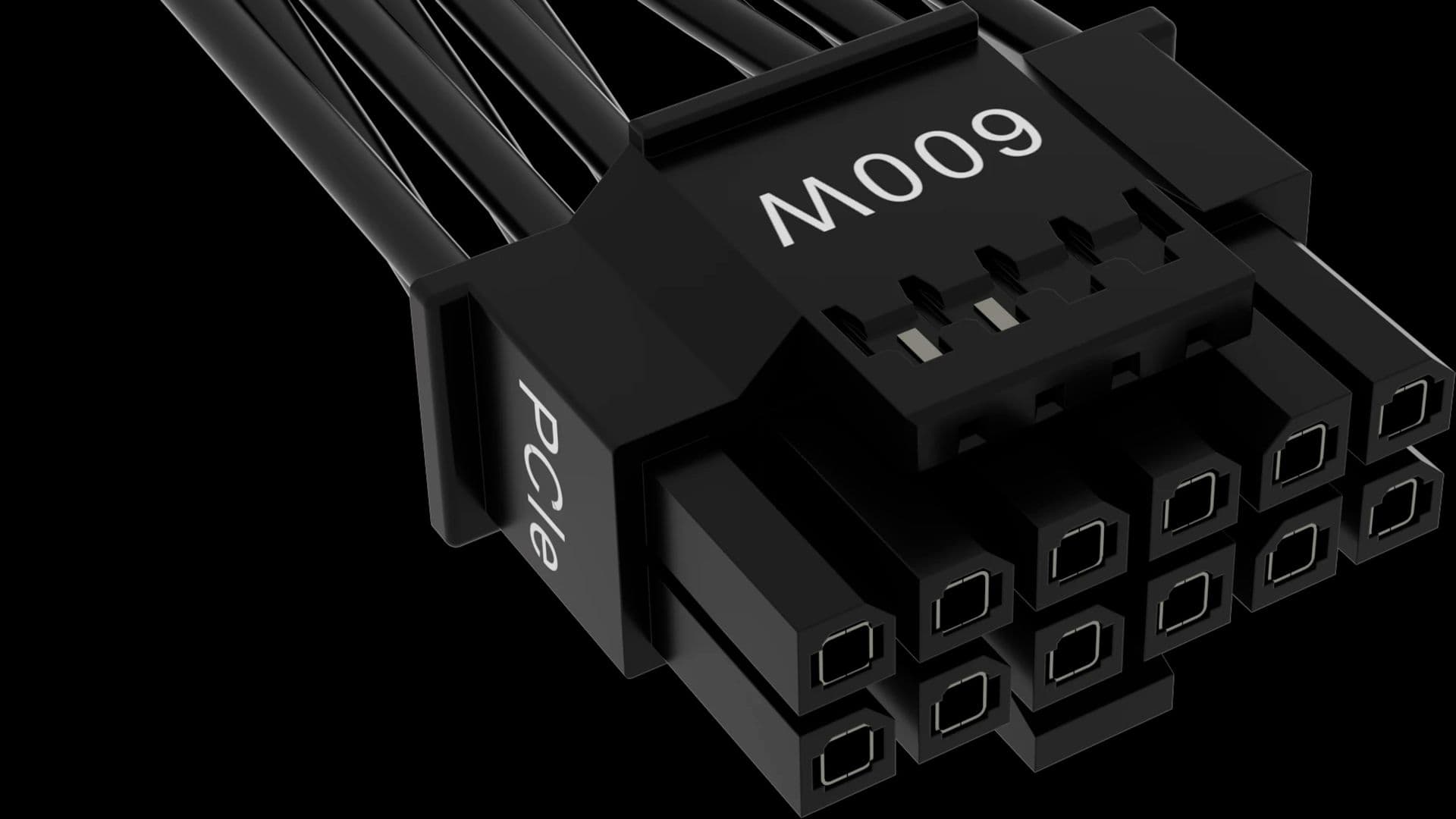

The 12V-2x6/12VHPWR Power Connector Crisis

The 12V-2x6/12VHPWR power connector is already considered one of the most unreliable connector designs ever created for PCIe cards, even under optimal conditions. There's no telling what might happen if this connector is tampered with—yet that's exactly what Cooler Master customer service recommended to one of their customers, as reported by Igor's Lab.

The Problem: Incompatible Hardware

A customer who owned an Asus RTX 5070 Ti graphics card contacted Cooler Master's support team because the integrated right-angled 12V-2x6 power cable from their MWE Gold V2 1250-watt power supply wouldn't fit properly with the graphics card's power connector. The connector was allegedly offset inside the graphics card, preventing correct plug-in.

Design Flaws Revealed

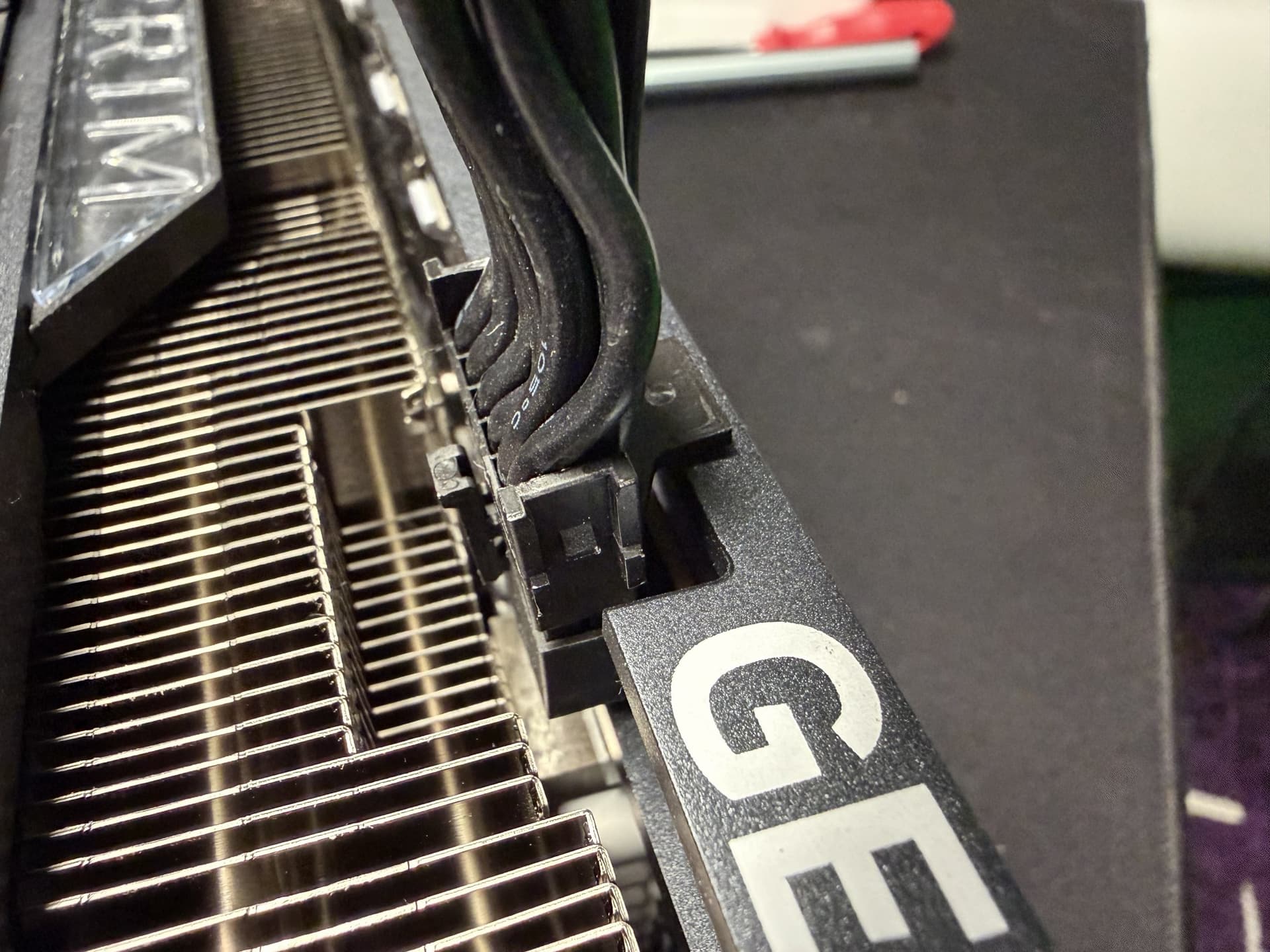

This issue wouldn't exist if Cooler Master's quality control department had identified the design error initially. Igor's Lab discovered that Cooler Master's cables have an internal housing that's 3.2mm shorter than Nvidia's reference 12V-2x6 power adapter. Since Nvidia's adapter is built explicitly for the CEM 5.1 standard, it serves as a reliable reference point.

The Dangerous "Solution"

While removing the right-angle cover from the original Cooler Master cable might seem like a simple fix, these 12V-2x6 connectors are extremely delicate. Bending the wires straight can severely compromise the internal integrity of the pins. As previous coverage of the 12V-2x6/12VHPWR power connector has shown, even subtle movements of the pins inside can increase electrical resistance, significantly raising the risk of fire or meltdown.

The Bigger Picture

This incident highlights serious concerns about customer service practices in the tech industry and the potential dangers of following manufacturer advice without proper technical validation.
